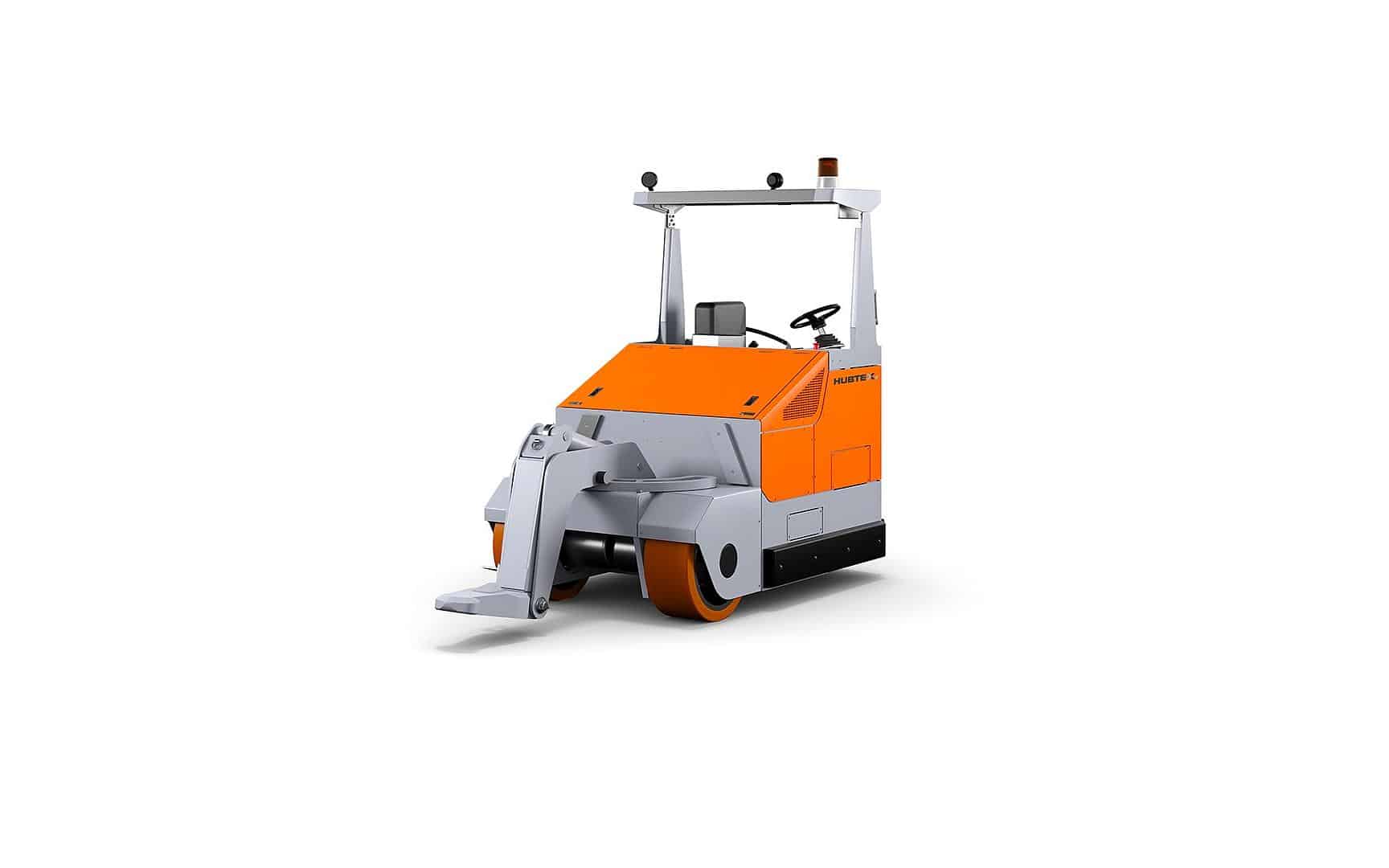

TOWING TRACTOR WITH GOOSE-NECK

TOWING TRACTOR WITH GOOSE-NECK

Category:

Up to 50t system load

Lifting cargo trailers

Cost effective heavy-duty transport

The field of application of the electric towing tractor with goose-neck is primarily the automotive industry and its suppliers. The HUBTEX electric towing tractor with hydraulic goose-neck is equipped with a driver’s seat and suitable for handling cargo trailers when coils need to be transported frequently, quickly and reliably. Furthermore, the fast and reliable transport of heavy, compact machine parts is part of the tasks of our electric towing tractor. HUBTEX designs the right vehicle for every application and every customer requirement.

FEATURES

OPERATION
Operation via a driver’s cab is available for our electric towing tractor with gooseneck. Thanks to the hydraulic steering system, it is easy to master complex driving directions, and the generously proportioned transverse seating cab and ergonomically arranged controls make working comfortable.
CHASSIS

The vehicle is based on a three-point chassis which, due to its small turning radius, can even be maneuvered through complex bottlenecks without any problems.
The option of two different tire variants (PU / EL) means that our electric towing tractors can be used in combined indoor and outdoor applications as well as on industrial floors, depending on the load.

GOOSENECK
The name speaks for itself here. Due to its design feature, the hydraulic gooseneck can achieve a variable lift height of up to 500 mm. This makes the automatic coupling process for cargo trailers even simpler. If the load is connected to our electric towing tractor via the gooseneck, transport tasks from 32 to 50 tons can be handled.
Series Load capacity (t) Load handling Lifting height (mm) Chassis Tire equipment Drive Cab
4820 up to 32 goose-neck up to 500 3-wheel PU/EL Electric Transverse
seat
