MasterTug® MT300+

MasterTug® MT300+

The MasterTug® MT300+ utilises the use of a hydraulic weight transfer system to provide even weight distribution of heavy loads.

A quick release pin or combi-lock, coupled with the hydraulic lifting mast, allows the MT300+ to part-lift the attached load safely. This creates the traction needed to move loads of up to 6,600 lbs.

The addition of a variable speed control, self-adjusting castor guard and an automatic tiller release braking system keep the operator safe at all times.

To see how the MT300+ can help improve your safety and efficiency, book a free on-site demonstration

Key Features

  • Push and Pull any load safely up to 6,600 lbs
  • Interchangeable battery for 24/7 operation
  • Tiller arm release automatic braking system
  • Variable speed controls
  • Hydraulic Weight Transfer for even weight distribution
  • Self-adjusting castor guard
  • Fully customisable and bespoke couplings
Application Gallery

Safety Features

Automatic cut off as tiller arm returns to vertical

 Anti-crush button

 Emergency stop button

 Warning horn

 Integrated Lift Point
Options

Flashing safety light and motion bleeper

 Lithium battery

 ATEX not available in the US

 Variable speed selector

 combi lock

quick release coupling pins
Couplings

Coupling – male – pin

Coupling – male – height adjustable tow ball – 50mm

Coupling – male – adjustable towing arm

Coupling – male – height adjustable box – small – horizontal

Coupling – female – box

Bespoke couplings available
Technical Data

Identification

Product code MT300+
Recommended load weight – Castors 6,600 lbs
Recommended load weight – Rails 26,000 lbs
Machine weight including battery 500 lb
Drive type Electric AC
Parking brake Electromagnetic
Drive wheel type Polyurethane
Drive motor power 1.2 kW
Controller type AC
Variable machine speed 0.1 km/h – 3.1 km/h
Ingress Protection IP44

Battery options

Battery pack – sealed 73Ah 24V – interchangeable

Charging options

Charger – internal 12.5A 24V – 110V-240V
Charger – external 12.5A 24V – 110V-240V

Additional equipment

Flashing safety light and motion bleeper
two speed selector switch
battery protection system

Male coupling options

Coupling – male – height adjustable combi – medium
Coupling – male – height adjustable box – medium
Coupling – channel coupling body

Female coupling options

Coupling – female – box-medium
Coupling – female – combi – medium

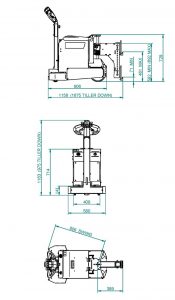

Dimensions
