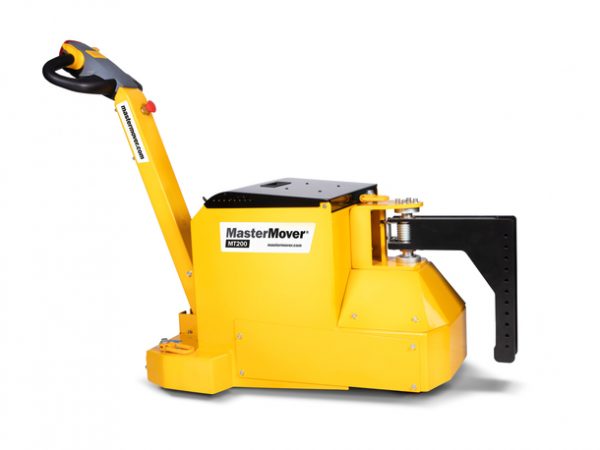

MasterTug® MT200

MasterTug® MT200

The MasterTug® MT200 is the smallest electric tug in the MasterTug® range and is designed to move loads weighing up to 4,400 lbs.

The internal weight packs provide maximum traction, allowing the high powered AC motor to work at maximum efficiency. Coupled with the variable speed button, the MT200 is the perfect electric tug for moving parts, stock or containers through various environments.

The automatic tiller cut off, self-adjusting castors and additional anchor points all maximises operator safety and the interchangeable battery ensures the machine is available for use 24/7.

To see how the MT200 can help you improve your safety and efficiency, book a free on-site demonstration

Key Features

  • Push and Pull any load safely up to 4,400 lbs
  • Interchangeable battery for 24/7 operation
  • Tiller arm release automatic braking system
  • Anti-crush button for operator safety
  • Internal weight packs for added stability
  • Variable speed controls
  • Fully customisable and bespoke couplings

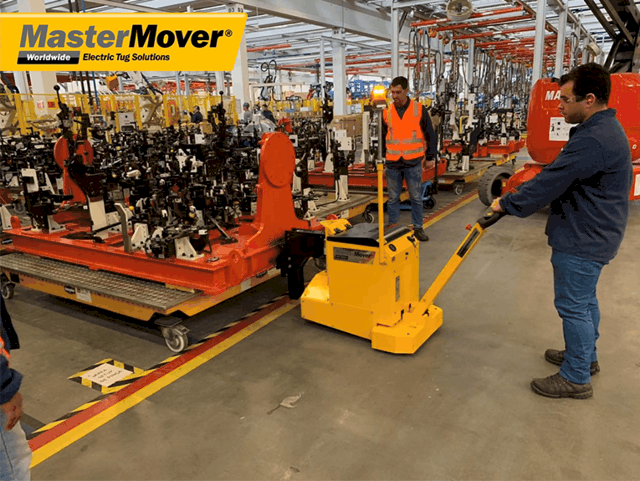

Application Gallery

Automatic cut off as tiller arm returns to vertical

Emergency stop and warning horn

Slow and fast speed selector for complete control

Automatic braking system when operator releases the throttle


Safety Features

Automatic cut off as tiller arm returns to vertical

Emergency stop and warning horn

Slow and fast speed selector for complete control

Automatic braking system when operator releases the throttle

Options

Flashing safety light and motion bleeper

Two speed selector switch

Battery protection system

Lithium battery

Available in ATEX
Couplings

Coupling – male – height adjustable box

Coupling – female – box

Bespoke couplings available
Technical Data

Identification

Product code MT200
Recommended load weight – Castors 4,400 lbs
Recommended load weight – Rails 17,600 lbs
Machine weight including battery 500 lb
Drive type Electric AC
Parking brake Electromagnetic
Drive wheel type Polyurethane
Drive motor power 1.2 kW
Controller type AC
Variable machine speed 0.1 mph – 3.1 mph
Ingress Protection IP44

Battery options

Battery pack – sealed – 46Ah 24V – interchangeable

Charging options

Charger – internal – 12.5A 24V – 110V-240V
Charger – external – 10A 24V – 110V-240V

Mast options

Mast – fixed

Additional equipment

Flashing safety light and motion bleeper
Two speed selector switch
Lifting and anchoring points
Battery protection system

Male coupling options

Coupling – male – height adjustable box

Female coupling options

Coupling – female – box

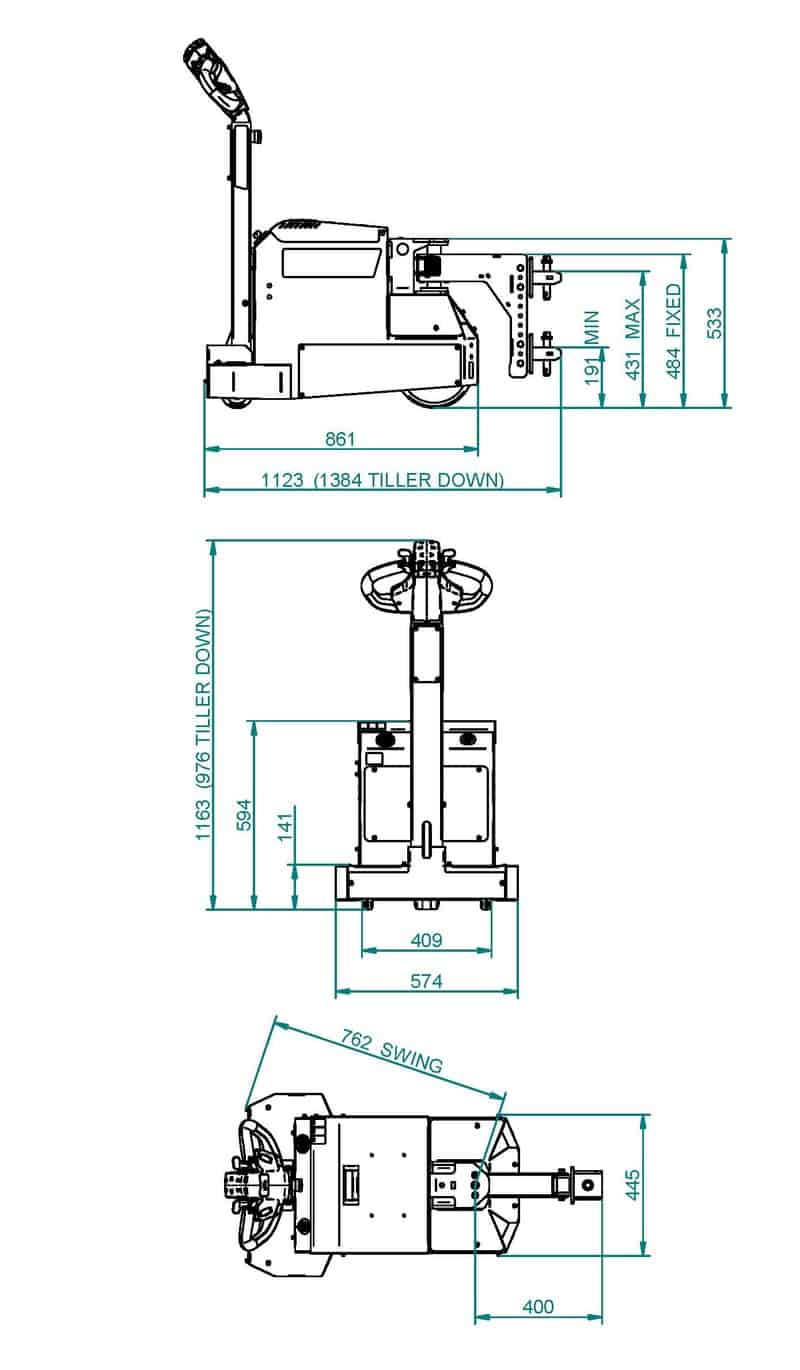

Dimensions
