MasterHandler® MH400+

MasterHandler® MH400+

The MasterHandler® MH400+ is a multi-directional capable of moving loads where space is limited, thanks to its minimal turning radius.

The low profile of the MH400+ allows it to keep the travelling loads of up to 8,800 lb straight and stop uncontrolled sideways movement. The hydraulic coupling creates an unbreakable connection between the electric tug and attached load, giving total peace-of-mind and complete control.

The variable speed button allows for the efficient movement of parts, stock or containers through various environments, whilst the tiller arm automatic cut-off and anti-crush buttons keep the operator safe at all times.

To see how the MH400+ can help improve your safety and efficiency, book a free on-site demonstration

Key Features

  • Push and Pull any load safely up to 8,800 lb
  • Safe & secure hydraulic coupling
  • Variable speed controls
  • Raises fixed front wheel loads
  • Tiller arm release automatic braking system
  • Fully customisable and bespoke couplings
  • Available in Stainless Steel
Safety Features

Automatic cut off as tiller arm returns to vertical

 Anti-crush button

 Emergency stop button

 Warning horn
Options

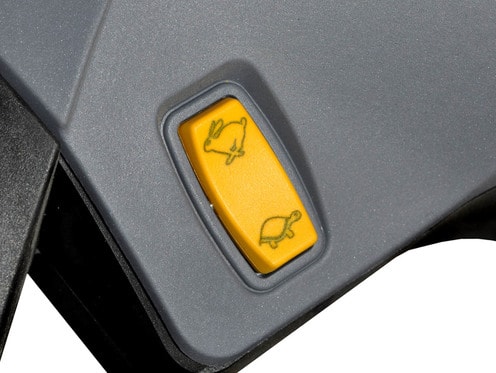

two speed selector switch

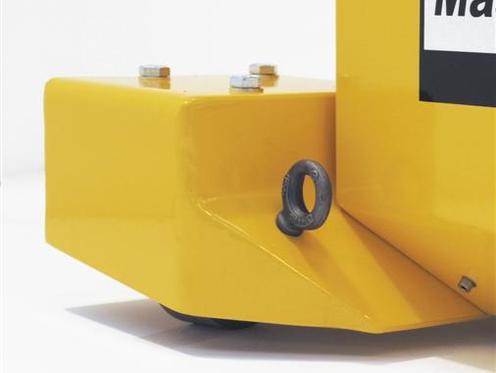

 Lifting eyes

 flashing safety light and motion bleeper
Couplings

Bespoke couplings available
Technical Data

Identification

Product code MH400+
Recommended load weight – Castors 8,800 lb
Recommended load weight – Rails 35,000 lb
Machine weight including battery 500 lb
Drive type Electric AC
Parking brake Electromagnetic
Drive wheel type Polyurethane
Drive motor power 2 kW
Controller type AC
Variable machine speed 0.1 mph – 3.1 mph

Charging options

Charger – external – 15A 24V – 110V-240V
Charger – external – 10A 24V – 110V-240V

Additional equipment

lifting and anchoring points
flashing safety light and motion bleeper
two speed selector switch
Dimensions
