ELECTRIC TWO-SIDED ORDER PICKING PLATFORM WITH VACUUM SUCTION DEVICE

ELECTRIC TWO-SIDED ORDER PICKING PLATFORM WITH VACUUM SUCTION DEVICE

Category:

Order picking on both sides of the rack

High rate of turnover

Narrow rack aisle width

The electric two-sided order picking platforms of the EZK series are solely order picking platforms. Whether as the 2-mast or scissor lift version, they enable the picking of high-quality sheet materials. The goods can be easily picked from either side of the rack aisle.

FEATURES

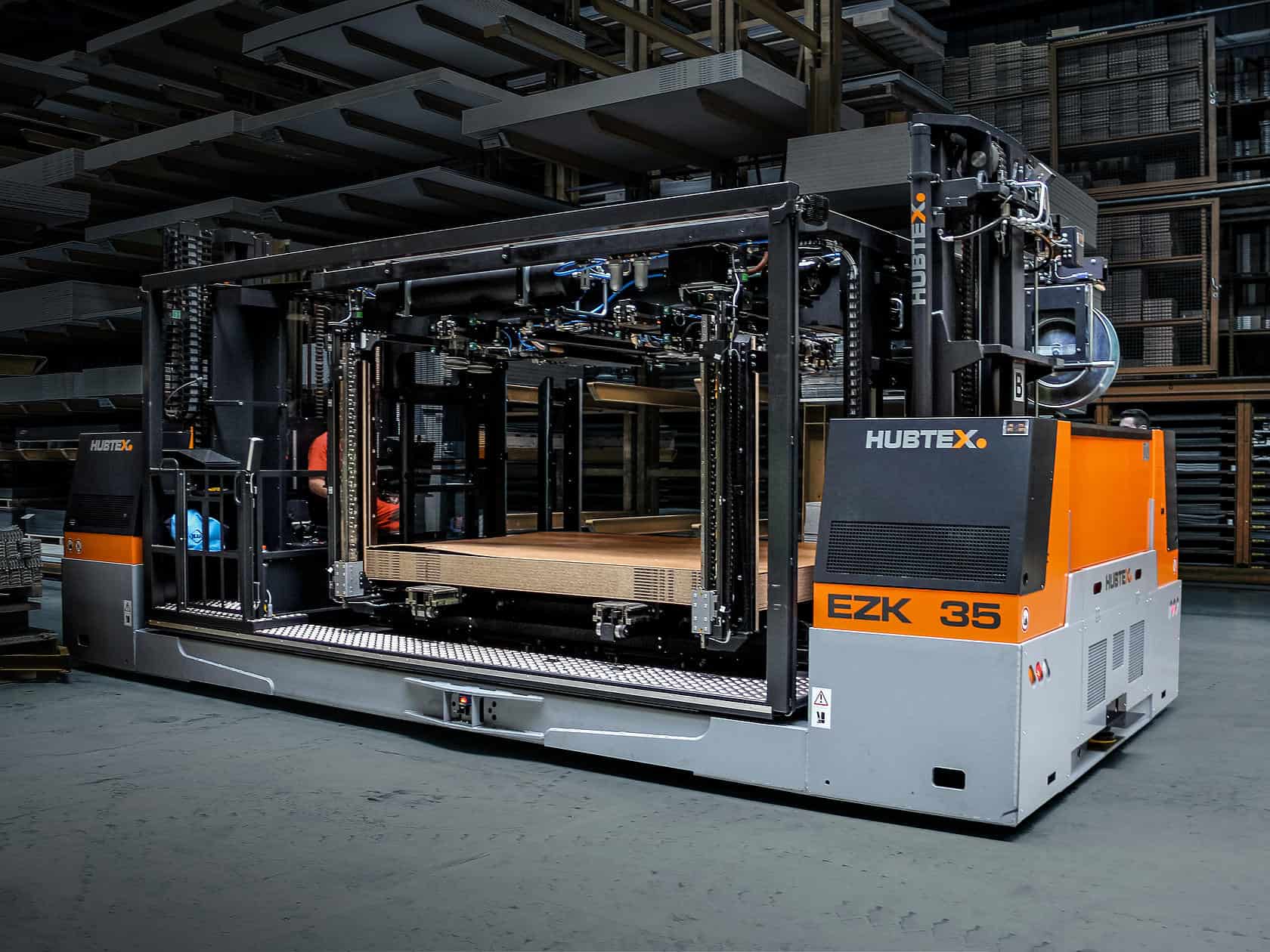

2-MAST VERSION
The 2-mast version of the HUBTEX order picking platform is especially characterized by its low platform height. This offers benefits when accessing the lowest rack level

.

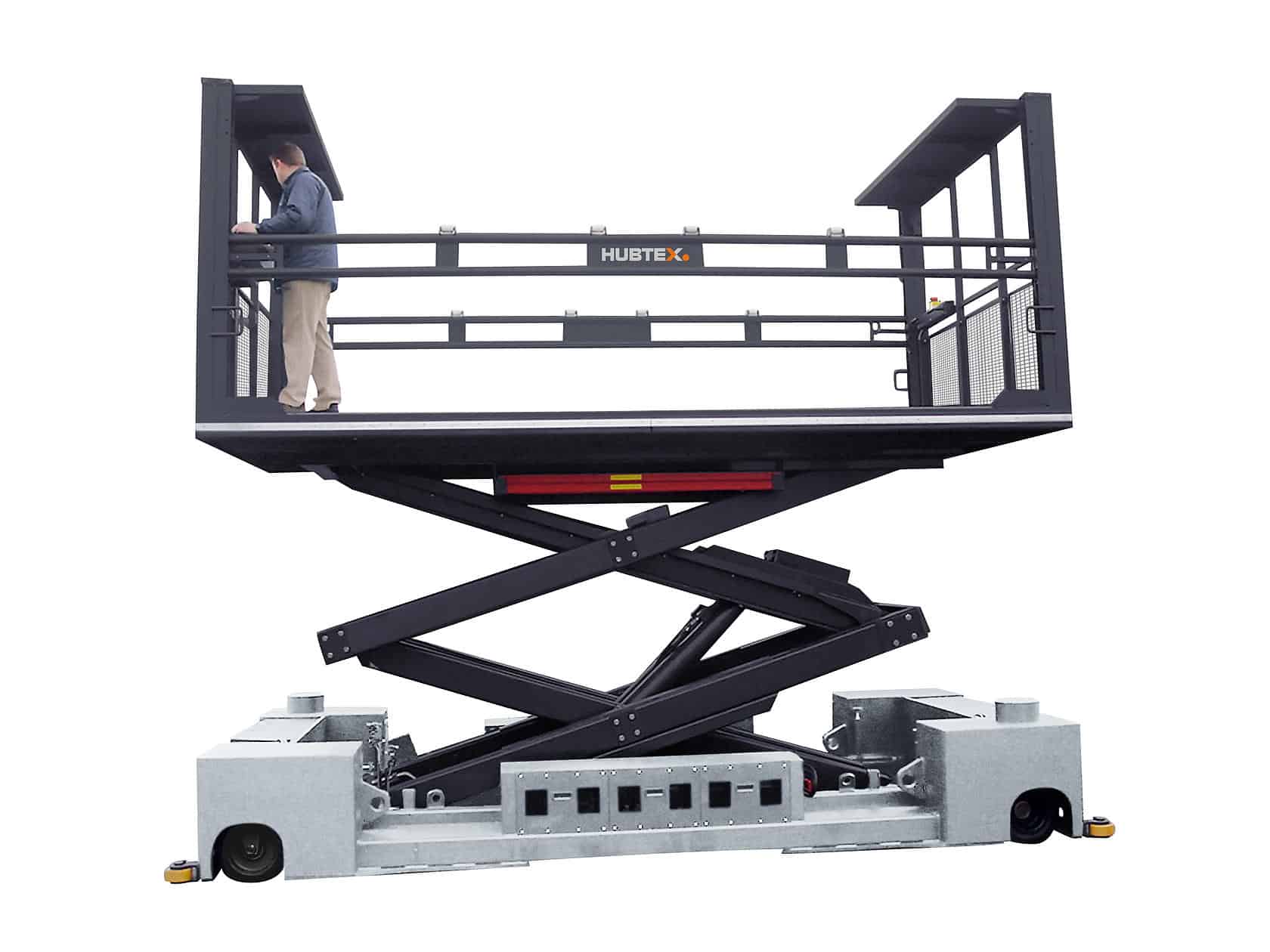

SCISSOR LIFT VERSION
In contrast to the 2-mast version, the advantage of the scissor lift version is its shorter overall length. For this reason, order picking platforms with a scissor lift system can be operated in significantly narrower spaces. Thus, the width of the transfer aisle can be reduced.
MULTIDIRECTIONAL STEERING
HUBTEX sets innovative standards with the HX multidirectional steering system. Using the optionally available omnidirectional steering system enables the trucks to change without stopping from longitudinal to transverse drive. This reduces the time needed to switch wheels, provides excellent maneuverability and has the added benefit of significantly reducing wear

.

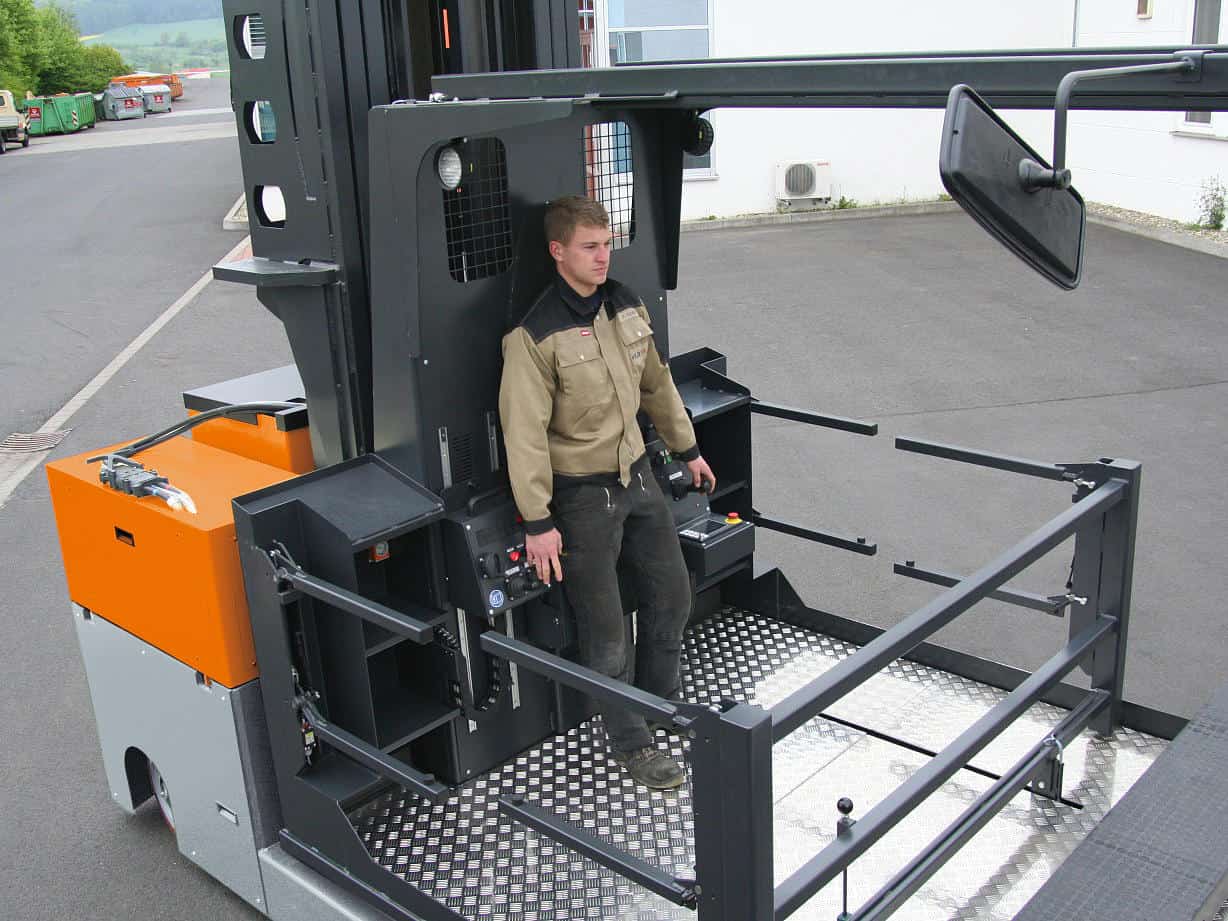

CONTROL STATION
You can choose different variants for operating the vehicle. It can be equipped with one or two control stations. When equipped with two control stations per vehicle, the advantage is the best possible overview in each driving direction. Moreover, the operator can choose between two different configurations of the control station. Standing, in main driving direction or seated, facing the load (only in combination with a personal protection system).
TELESCOPIC TABLES
HUBTEX two-sided order pickers can be optionally equipped with telescopic tables for the transfer of the completed consignment. This means that a finished pack can be passed to a transfer station on either side of the vehicle

.

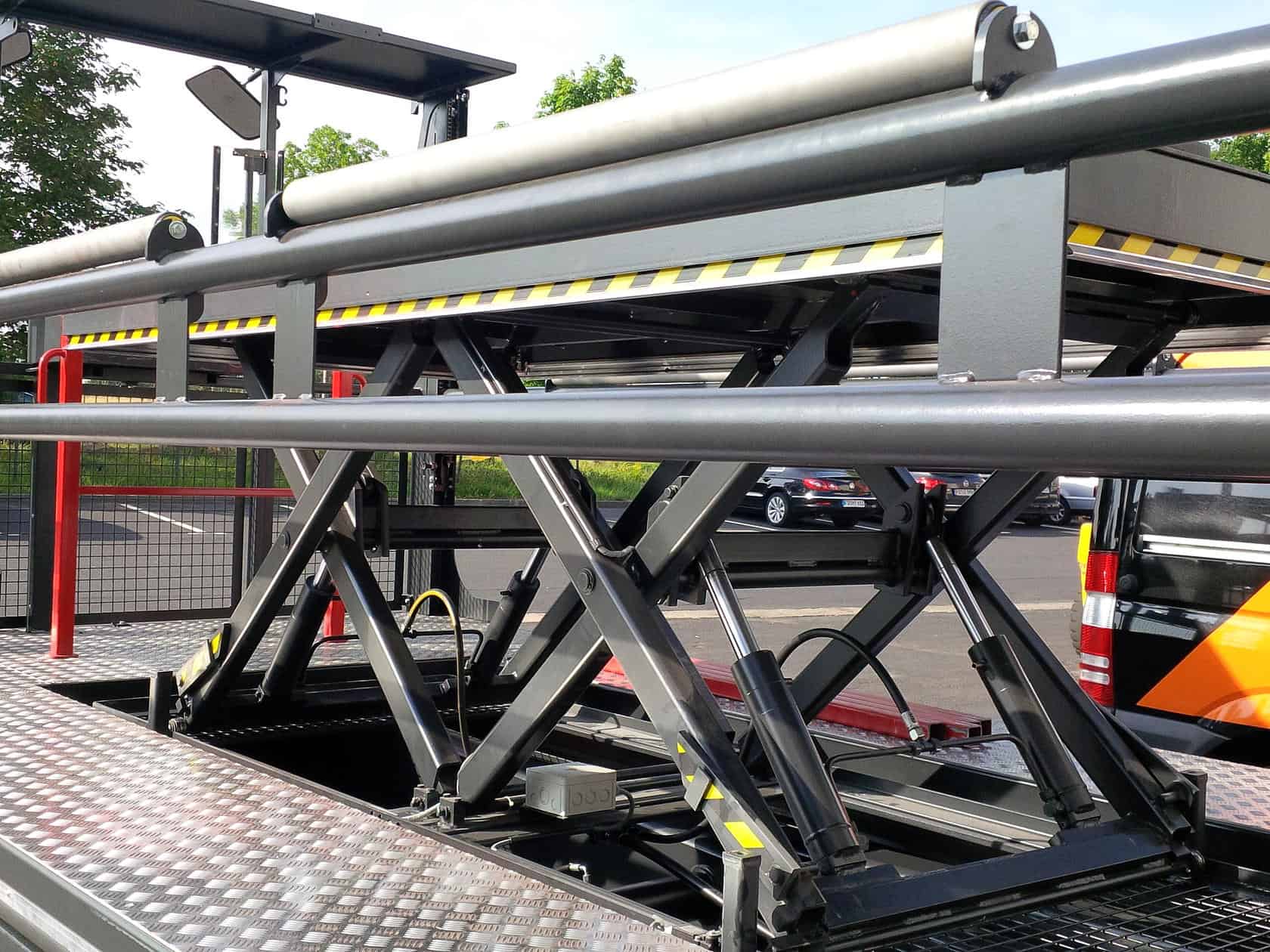

SCISSOR LIFT
As an option, the HUBTEX order picking platform can be equipped with a scissor lift on the platform to facilitate the ergonomic picking of goods. Thus, the stacking height on the vehicle can be individually adjusted, avoiding unnecessary bending or stooping by the operator.
VACUUM SUCTION DEVICE
The transport of high-quality sheet materials requires maximum precision. The vacuum suction device is used in combination with the EZK two-sided order picking platform to ergonomically remove sheets from the rack compartments. Employees are no longer required to push the items out of the rack compartment onto the platform – thus reducing material damage to a minimum.
Series Load capacity (t) Load bed width (mm) Lift height (mm) Frame length L (mm) Load bed opening RA (mm) Tire equipment (optional) Battery voltage Cab (optional)
EZK (scissors) 3.0 to 10.0 600 to 2500 up to 10000 up to 7000               — PU / EL 80 V Driver’s stand
EZK (lift mast) 3.0 to 10.0 600 to 2500 up to 10000 up to 8000               — PU / EL 80 V Driver’s stand
EZK + Vacumax Can be attached to both EZK variants depending on the application requirements
EZK + AGV Automation on request
