The AT1200 TOW electric tug is perfect for safely towing loads where weight transfer is not possible, up to 26,000 lb. The tug is self-weighted and compact, providing excellent traction for effortless load towing whilst attaching to any load with a draw bar, towing eye or ball hitch fitting. It can be used inside or outside, including on slopes and less than perfect surfaces.

  • FEA tested steel chassis
  • Internal weight packs
  • Optimised size, puncture -proof wheels
Application Gallery

Safety Features

Automatic cut off as tiller arm returns to vertical

 Anti-crush button

 Emergency stop button

 Warning horn
Options

Flashing safety light and motion bleeper

 Lithium battery

 Fifth wheel

ATEX not available in the US

two speed selector switch

 Battery protection system

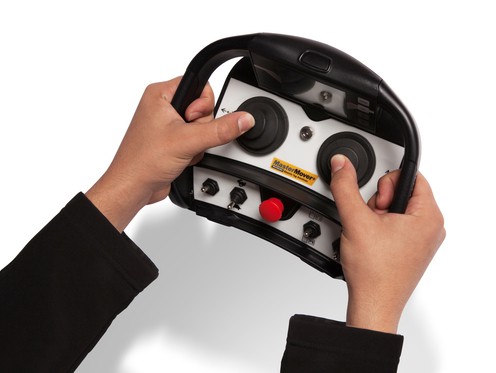

Wireless control handset
Couplings

 Coupling – male – pin

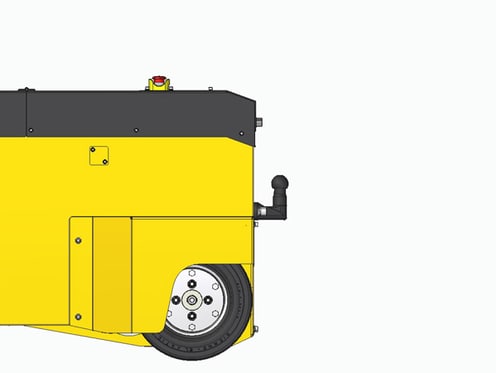

 Coupling – male – height adjustable tow ball – 50mm

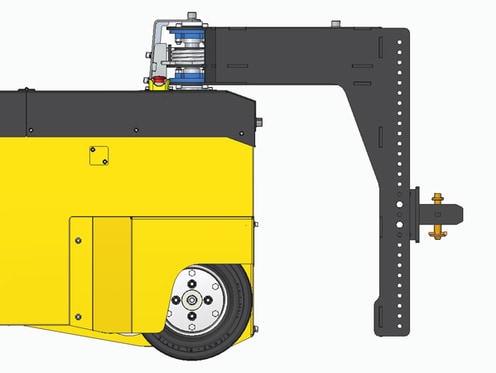

 Coupling – male – height adjustable box

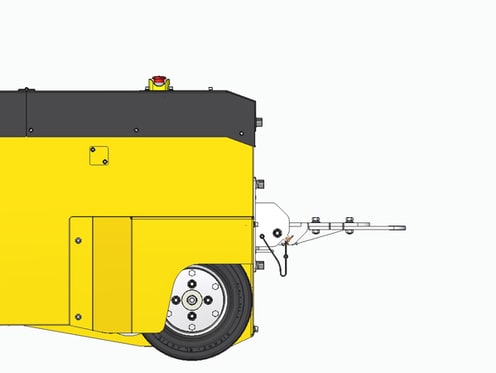

 Coupling – adjustable towing arm

 Machine crawl coupling assist

 Variable speed selector
Technical Data

Identification

Product code AT1200 TOW
Recommended load weight – Castors If info alt 383122 26,000 lb
Recommended load weight – Rails If info alt 383122 48000 kg
Machine weight including battery 1350 kg
Drive type Electric AC
Parking brake Electromagnetic
Drive wheel type Superelastic Solid Rubber
Drive motor power 2 x 2.0 kW
Controller type AC
Variable machine speed 0-3.7 mph
Ingress Protection IP44

Battery options

Battery pack – sealed – 204Ah 24V – Interchangeable
Battery pack – sealed – 179 Ah 24V – Interchangable
Battery pack – lithium – 158 Ah 24V – fixed

Additional equipment

Option – flashing safety light and motion bleeper
Option – two speed selector switch
Option – fifth wheel
Option – wireless control handset
Option – battery protection system
Option – Lithium battery

Male coupling options

Coupling – male – pin
Coupling – male – height adjustable tow ball – 50mm
Coupling – male – height adjustable box
Coupling – male – adjustable towing arm
Coupling – male – height adjustable tow ball – 50mm
Coupling – male – height adjustable box

Female coupling options

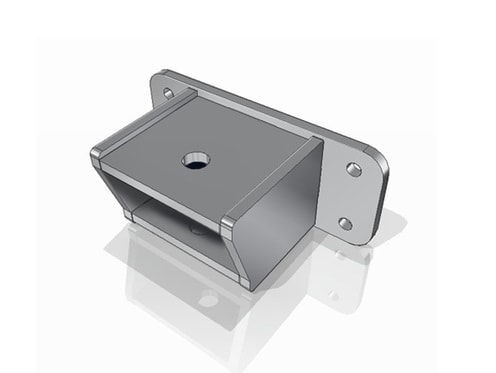

Coupling – female – box
Dimensions
