ELECTRIC MULTIDIRECTIONAL ORDER PICKING PLATFORM

ELECTRIC MULTIDIRECTIONAL ORDER PICKING PLATFORM

Category:

Order picking on both sides of the rack

High rate of turnover

Narrow rack aisle width

The electric two-sided order picking platforms of the EZK series are solely order picking platforms. Whether in the 2-mast or scissor lift version, they enable the picking of profiles up to 8 m in length. The goods can be easily picked from either side of the rack aisle. A load shifting device is optionally available for both models to facilitate the removal of the customer consignment by a separate lift truck.

FEATURES

2-MAST VERSION
The 2-mast version of the HUBTEX order picking platform is especially characterized by its low platform height. This offers benefits when accessing the lowest rack level.

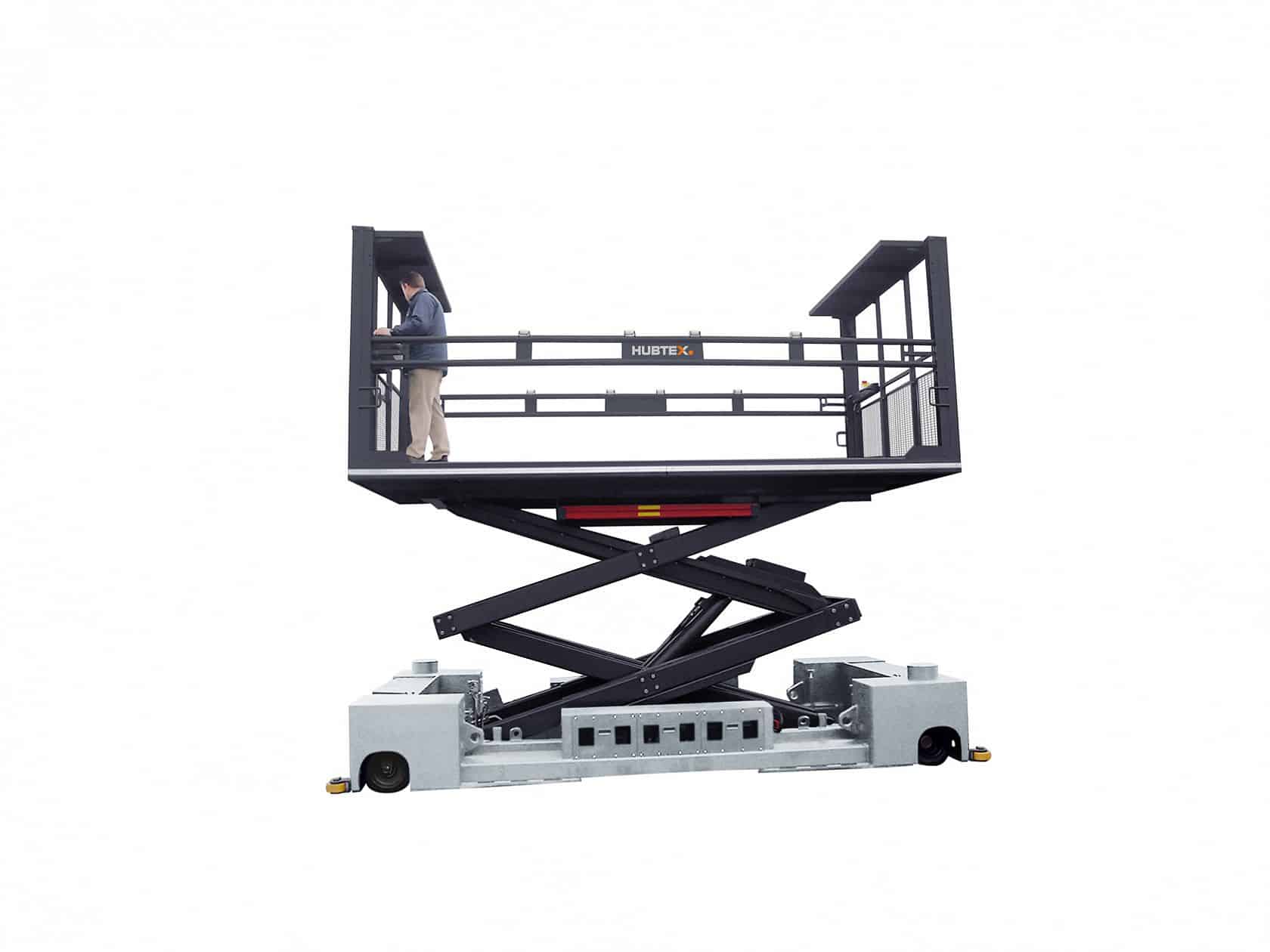

SCISSOR LIFT VERSION
In contrast to the 2-mast version, the advantage of the scissor lift version is its shorter overall length. For this reason, order picking platforms with a scissor lift system can be operated in significantly narrower spaces. Thus, the width of the transfer aisle can be reduced.
MULTIDIRECTIONAL STEERING
HUBTEX sets innovative standards with the HX multidirectional steering system. Using the optionally available omnidirectional steering system enables the trucks to change without stopping from longitudinal to transverse drive. This lessens the time needed to switch wheels, provides excellent maneuverability and reduces wear on the wheels.
CONTROL STATION
You can choose different variants for operating the vehicle. It can be equipped with one or two control stations. When equipped with two control stations per vehicle, the advantage is the best possible overview in each driving direction. Moreover, the operator can choose between two different configurations of the control station. Standing in main driving direction, or seated, facing the load (only in combination with a personal protection system).

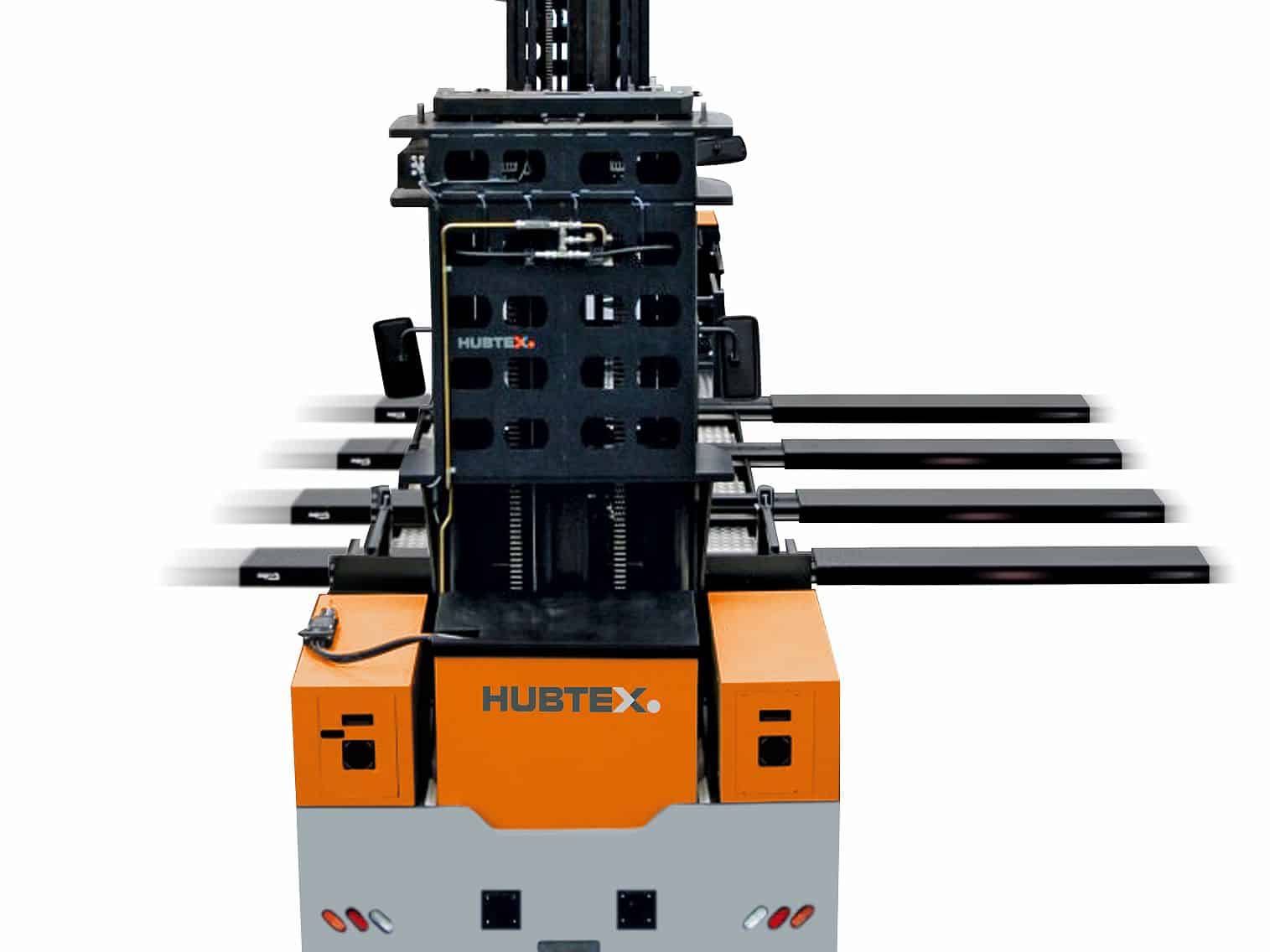

TELESCOPIC TABLES
HUBTEX two-sided order pickers can be optionally equipped with telescopic tables for the transfer of the completed consignment. In this way, a finished pack can be passed on to a transfer station from both sides of the order picking vehicle.

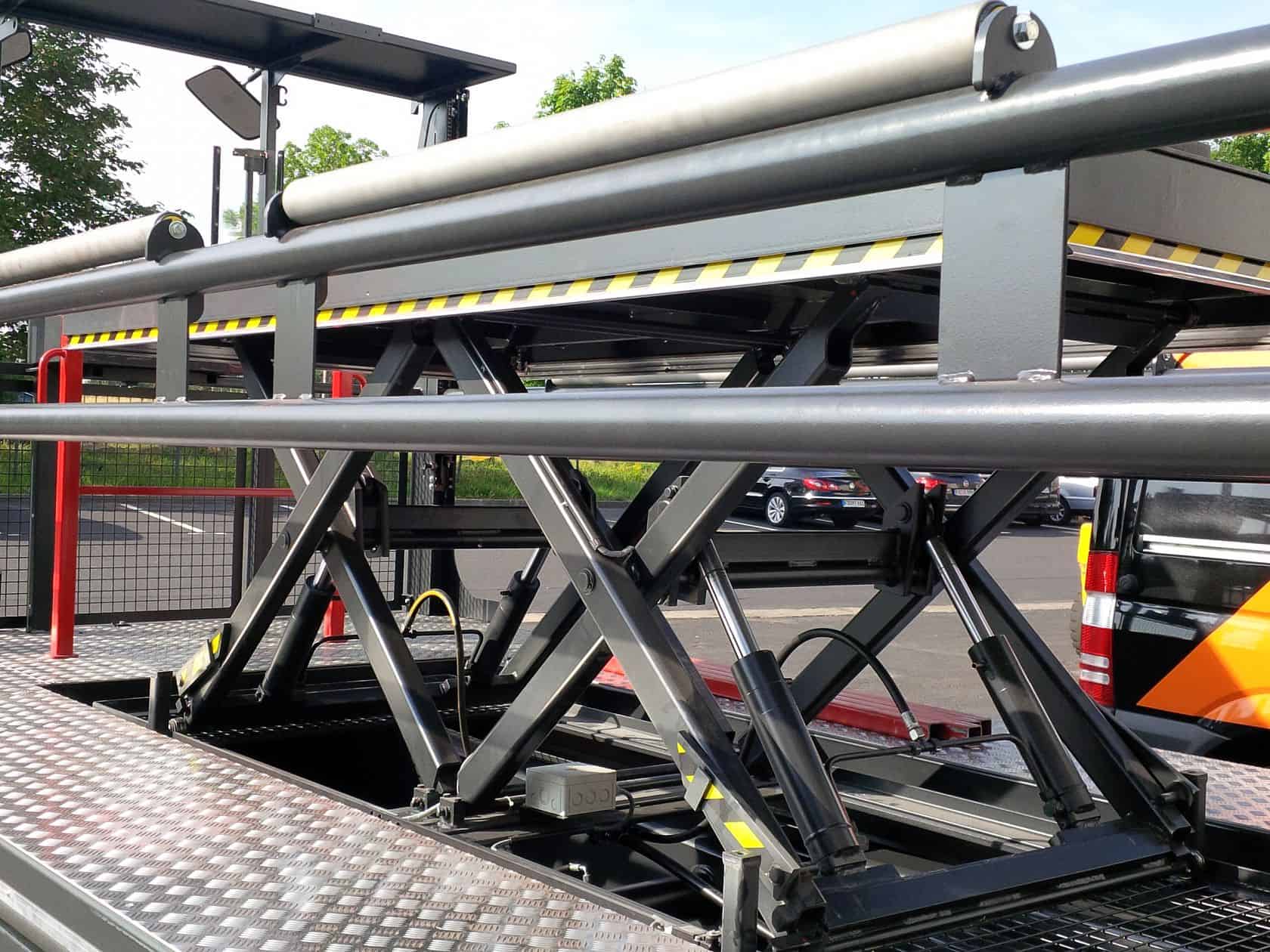

SCISSOR LIFT
As an option, the HUBTEX order picking platform can be equipped with a scissor lift on the platform to facilitate the ergonomic picking of goods. Thus, the stacking height on the vehicle can be individually adjusted, avoiding unnecessary bending or stooping by the operator.
Series Load capacity (t) Load bed width NB (mm) Lift height (mm) Frame length L (mm) Load bed opening RA (mm) Tire equipment (optional) Battery voltage Cab (optional)
EZK (scissors) 3.0 to 6.0 600 to 1200 up to 10000 up to 9000              — PU / EL 80 V Driver’s stand
EZK (lift mast) 3.0 to 6.0 600 to 1200 up to 10000 up to 10000               — PU / EL 80 V Driver’s stand
